Ground Fault Locator

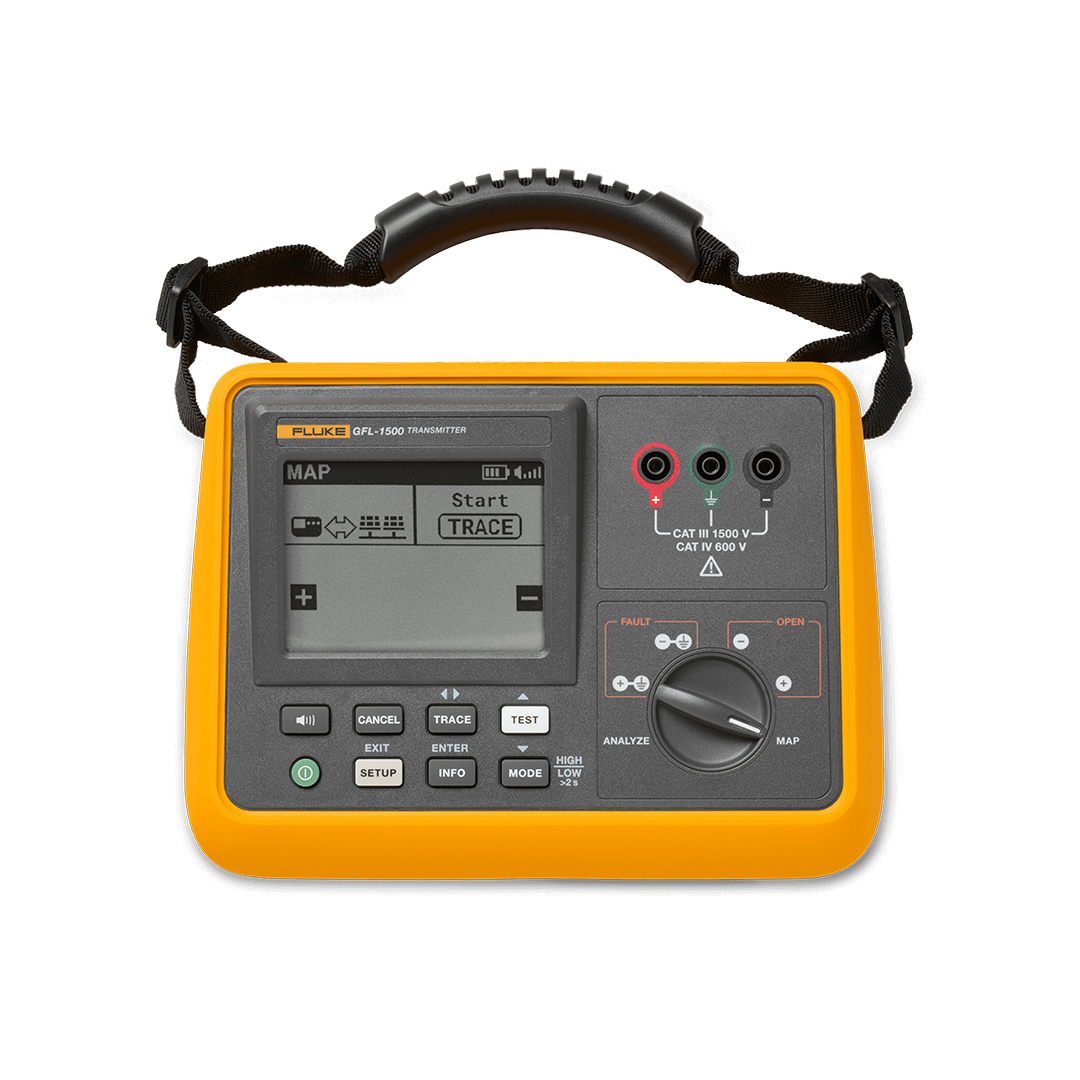

Fluke GFL-1500

Ground Fault Locator

Quickly & safely locate ground faults in PV systems.

An innovative frontline troubleshooting set of tools to help technicians quickly pinpoint active ground faults in PV systems. It works by injecting a traceable signal into the array for fast, intuitive, non-contact tracing directly to the fault location.

  • Get PV arrays back online faster

  • Eliminate time-consuming brute-force troubleshooting

  • Decrease exposure to hazards with non-contract tracing

  • CAT III 1500 V DC / CAT IV 600 V rated transmitter & receiver

Download Datasheet
Download Datasheet
Transmitter/Receiver
Clamp
Measurement category
CAT III 1500 V DC / CAT IV 600 V
Not category rated. Use on insulated conductors only, up to 1500 V
Operating voltage
1500 V DC / 600 V AC
Non-contact. Use on insulated conductors only, up to 1500 V
Trace signal operating frequency
FAULT & MAP: 6.25 kHz OPEN: 32.764 kHz
N/A
Trace signal indications
Graphical display, audible beep/Numeric, bar graph display, audible beep, LED
AC current
AC Current Measurement
Transmitter/Receiver
Clamp
Range
N/A
150 mA
Resolution
N/A
0.1 mA
Maximum conductor diameter
N/A
61 mm
Display
Transmitter/Receiver
Clamp
Display type
Graphic LCD Display
Segment LCD Display
Illumination
Front light
Back light
Environmental specifications
Transmitter/Receiver
Clamp
Operating temperature
-20 °C to 50 °C
-10 °C to 50 °C
Operating Humidity (non-condensing)
95 %RH: 0 °C to <30 °C; 75 %RH: 30 °C to <40 °C; 45 %RH: 40 °C to 50 °C
90 %RH: 10 °C to <30°C; 75 %RH: 30 °C to <40 °C; 45 %RH: 40 °C to 50 °C
Operating Altitude
0 to 3 000 m
Storage temperature and humidity (without batteries)
-20 °C to 70 °C, <95 %RH
-40 °C to 60 °C, <95 %RH
Transient protection
10.00 kV (1.2/50 μS surge)
N/A
IP rating
IP54
IP30
Drop test
1 m
Mechanical and general specifications
Transmitter/Receiver
Clamp
Power supply
8 x AA/4 x AA IEC LR6 alkaline or NiMH rechargeable
2 x AA IEC LR6 alkaline
Battery life (typical) No buzzer or front light
FAULT & MAP Array Mode: approx. 15 h FAULT & MAP Unit Mode: approx. 8 h OPEN Unit Mode: approx. 15 h/Approx. 16 h
>150 h (without backlight and spotlight)
Low battery indication
Yes
Dimensions (L x W x H)
Approx. 244 x 180 x 106 mm/Approx. 183 x 75 x 43 mm
Approx. 257 x 116 x 46 mm
Weight (batteries installed)
Approx. 2.04 kg/Approx. 0.27 kg
Approx. 0.6 kg
Test Lead Kit General Specifications
Includes
3x TL324 4mm to 4mm test leads (red, black, green),3x AC385 alligator clips (red, black, green), 2x TLPV1 MC4 to 4mm test leads (red, black)
Measurement category
CAT III 1500 V / CAT IV 1000 V (TL324 and AC385) CAT III 1500 V / CAT IV 600 V (TLPV1)
Operating current
30 A
Operating temperature
-20 °C to 50 °C
Storage temperature
-20 °C to 70 °C
Operating and storage humidity
95 %RH: 10 °C to <30 °C; 75 %RH: 30 °C to <40 °C; 45 %RH: -20 °C to <10 °C or 40 °C to 50 °C, non-condensing
Operating altitude
3000 m
Storage altitude
12,000 m
Pollution degree
2
Drop proof
1 m
Vibration
MIL-PRF-28800, class 2
Dimensions
TL324: 2 m AC385: approx. 93 x 52 x 21 mm, TLPV1: 1.5 m
Weight
Approx. 0.48 kg
